Graphs, Tasks, & Functions

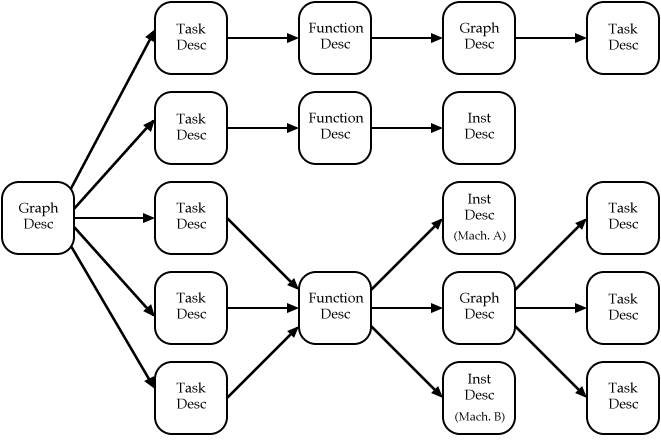

The different data structures used by Floe are interconnected to describe an application in the following manner:

• Graphs are comprised of Tasks, MConds, and Streams.
• The dependencies in a Graph may either be specified explicitly in dependent Tasks and MConds or implicitly through Streams.
• Tasks represent the evaluation of a particular Function or Graph in a particular context.
• Functions reference one or more Graph or Instruction Objects.

[ larger version ]

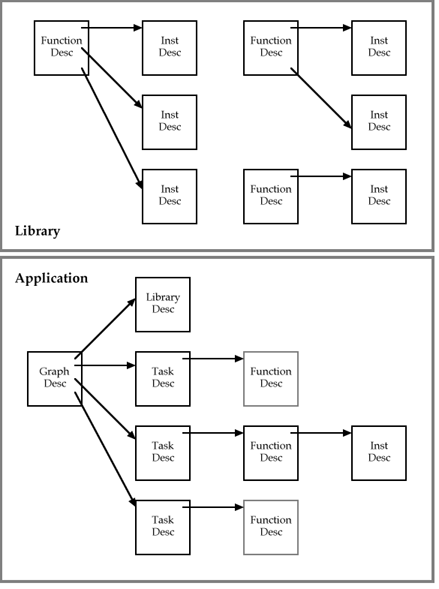

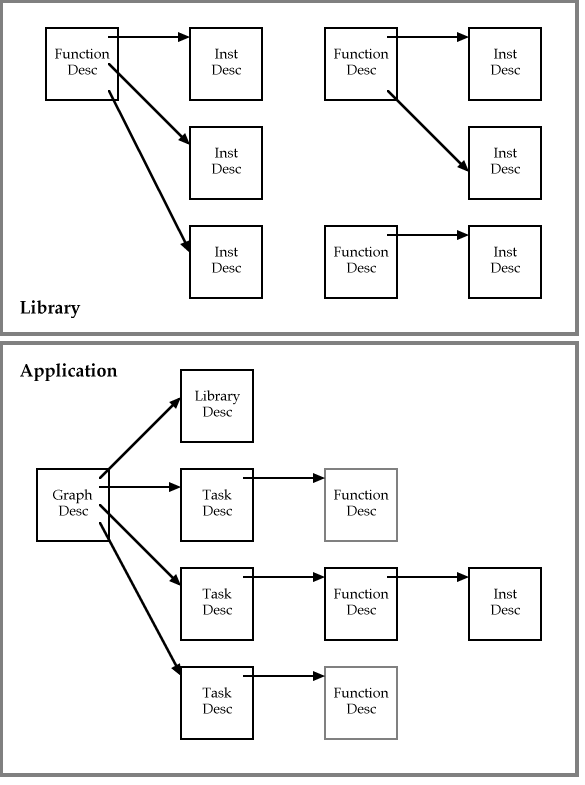

Libraries are supported in order to provide Instructions separate from the User Application:

[ larger version ]
